SU99 / SU299
☑ Designed to be compatible with sulzer® pump
☑ mechanical seal
☑ Pulp OEM Pump
(1)SU-99：SULZER® PUMP APP single cartridge seal
(2)SU-299：SULZER® PUMP APP dual cartridge seal
☑ mechanical seal
☑ Pulp OEM Pump
(1)SU-99：SULZER® PUMP APP single cartridge seal
(2)SU-299：SULZER® PUMP APP dual cartridge seal
Model :

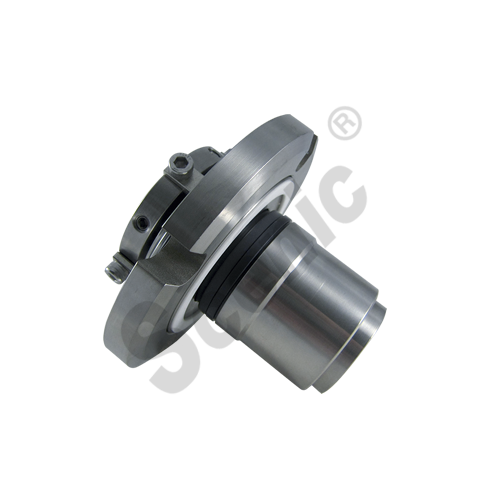

SU99/SU299 Pulp OEM Pump Cartridge Seals
- Cartridge seal design features innovative drop-proof springs for easy congregation.
- Highly reliable and widely used in a variety of industrial process applications.
- Lightweight and dual balanced design for optimal performance.
【Operating Capabilities】
- Temperature： -40 ~ 230°C (-40 ~ 446 °F )
- Pressure： Up to 300 psig (21 kg/cm2G)
-
Surface Speed： Up to 5000 fpm (25 m/s)
【Standard Materials】
- Stationary Ring：Carbon Graphite / Silicon Carbide / Tungsten Carbide
- Rotary Ring：Silicon Carbide / Tungsten Carbide
- Metal Parts：316 SS / 304 SS / 316L SS / 316Ti SS / Duplex Stainless / Alloy C-276 / Titanium / Monel®
- Elastomeric O-rings：FKM / AFLAS / NBR / EPDM / TV / FFKM (SceniRAZTM / Chemraz® / Kalrez®)
- Gland Gasket：Glass-Filled PTFE / Non- Asbestos / O-Ring
- Springs：316 SS / Alloy C-276 / Inconel®
※ Custom designs are available to cover the specific needs of customers.Please feel free to contact us.
