CAR600
☑ Single Cartridge Bellow seal
☑ High temp.
☑ High Pressure
☑ High temp.
☑ High Pressure
Model :

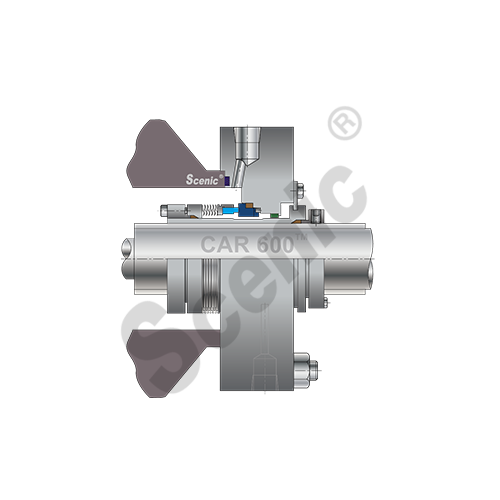

CAR600 Metal Bellows Single Cartridge Seal
【Operating Capabilities】
- Temperature： -75 ~ 426°C (-100 ~ 795 °F )
- Pressure： Single-ply bellows -vacuum to 285 psig ( 20 kg/cm2G )
- Double-ply bellows - vacuum to 640 psig ( 45 kg/cm2G )
-
Surface Speed： Up to 4923 fpm (25 m/s)
【Standard Materials】
- Stationary Ring：Carbon Graphite / Silicon Carbide / Tungsten Carbide
- Metal Parts：316 SS / Alloy C-276 / CAP 42
- Bellows：17-4 PH / Inconel-718 / Alloy C-27
- Elastomeric O-rings件：VITON / AFLAS / NBR / PTFE / FFKM (SceniRAZTM / Chemraz® / Kalrez®)
- High Pressure Design and High Temperature Operation
- Heat resistant faces and low expansion metalurgical components.
- Calculated faces to withstand stress & extreme condition.
- Excellent Fatigue Resistance
