EZ-46
PATENTED
☑ Single Cartridge Seal
☑ EZ-46™ makes your works easier
☑ Standard DIN/ANSI
☑ Light Solid
☑ High Temp.
☑ Single Cartridge Seal
☑ EZ-46™ makes your works easier
☑ Standard DIN/ANSI
☑ Light Solid
☑ High Temp.
Model :

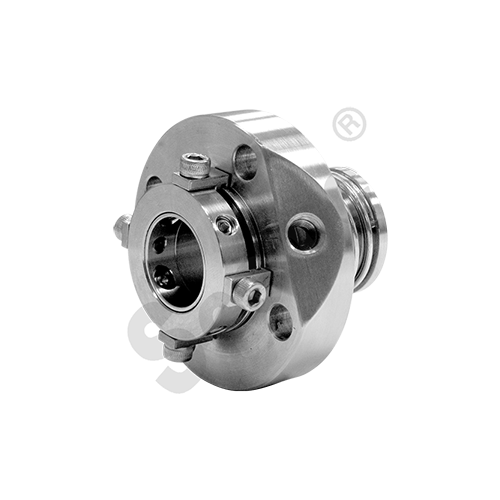

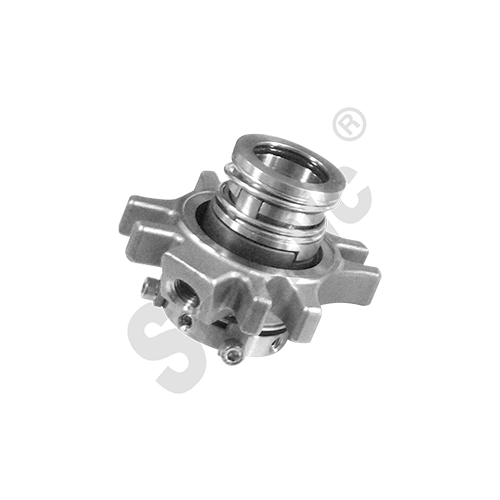

EZ-46 Single Mechanical Seal
【Operating Capabilities】
- Temperature： -40 ~ 80°C (-40 ~ 176 °F )
- Pressure： Up to 170 psig (12 kg/cm2G)
-
Surface Speed： Up to 4000 fpm (20 m/s)
- Stationary Ring：Carbon Graphite / Silicon Carbide / Tungsten Carbide
- Rotary Ring：Silicon Carbide / Tungsten Carbide
- Metal Parts：316 SS / 304 SS / 316L SS / 316Ti SS / Duplex Stainless / Alloy C-276 / Titanium / Monel®
- Elastomeric O-rings：FKM / AFLAS / NBR / EPDM / TV / FFKM (SceniRAZTM / Chemraz® / Kalrez®)
- Gland Gasket：Glass-Filled PTFE / Non- Asbestos / O-Ring
- Springs：316 SS / Alloy C-276 / Inconel®
- Single Cartridge Seal Design
- Patented Driving Structure
- Non-Clogging for Single Coil Spring
- Self-Aligning
- Secondary Seal Selection
- Monolithic Mating Face Design
- Minimize Maintain Cost
- Process pumps and general rotating equipment.
- Applied in handling high viscosity and easy to crystallization fluids.
- Methyl alcohol and alcohol process, foodstuff , and various chemical process pump.
- Pulp and paper, petrochemical, pharmaceutical, power generation, and wastewater treatment.
- Comply with requirements of standard and big bore DIN/ANSI pumps.
