CARFB2 / CARFB4

Back-to-Back Design Single-Stage Multi-Segments Rings Cartridge Seal for Low Pressure Application.

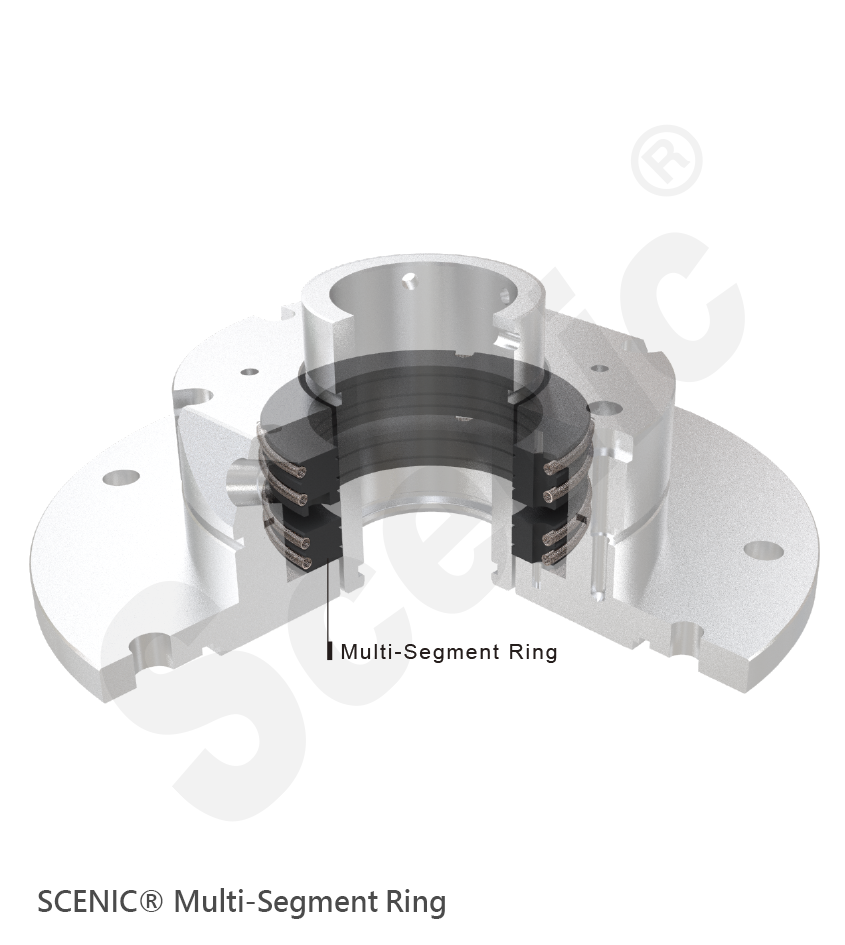

(1)CAR FB2：Single-Stage Multi-Segments Ring of Cartridge Seal
(2)CAR FB4：Double-Stages Multi-Segments Ring of Cartridge Seal

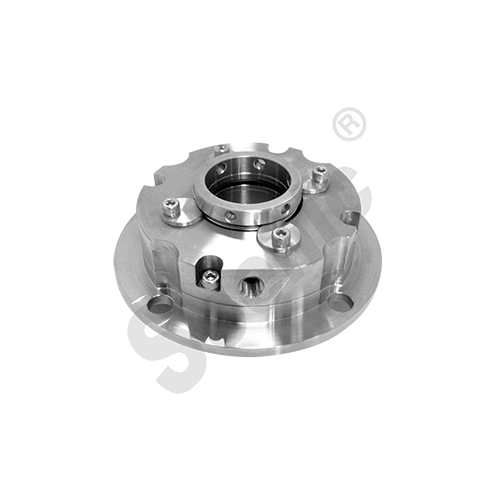

Model : CARFB2/CARFB4 ABC Multi-Segment Seals


※ More Customized Sealing Solution. Please feel free to contact us.


  Catalog Download


【Operating Capabilities】
  • Temperature：-120 ~ 400°C (-184 ~ 752 °F )
  • Pressure： Up to 21.34 psig (1.5 kg/cm2G)
  • Barrier Fluid Pressure: Up to 42.7 psig (3 kg/cm2G)
  • Surface Speed： Up to 5000 fpm (25 m/s)

【Standard Materials】

  • Multi-Segment Rings：Carbon Graphite / PTFE
  • Metal Parts：316 SS / 304 SS / 316L SS / 316Ti SS / Duplex Stainless / Alloy C- 276 / Titanium / Monel®
  • Elastomers：FKM / AFLAS / NBR / EPDM / TV / FFKM (SceniRAZTM / Chemraz® / Kalrez®)
  • Springs：316 SS / Alloy C-276 / Inconel®
  • High speed rotating equipment such as blowers, fans.
  • Low speed rotating equipment such as mixers, conveyors, dry running agitators, powder and granule grinders, and rotary valve.
  • Applicable on volatile, corrosive, toxic gas and fine particles processes.
  • Extensively used on chemical, pulp and paper, electrical, gas, granular processing Industries.
