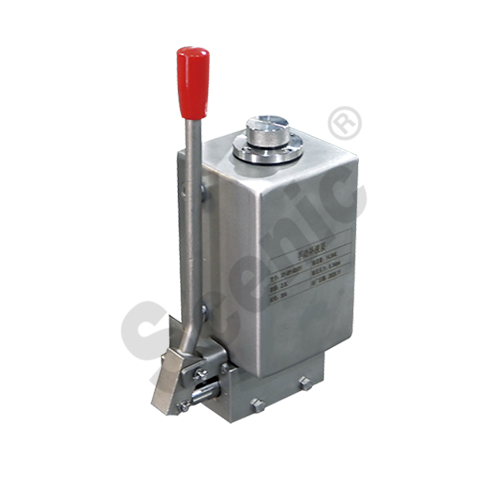

Our hand pump is a new type of high pressure in fusion pump.This product has a pretty appearance and special design on pipelines and check valve structure. It can effectively prevent oil from flowing in the opposite
direction, improve work efficiency, reduce working intensity.

It can undertake the filling for chemical pump mechanical seal system, can also be in stalled in other mechanical equipment as a hydraulic power supply, or be used as a hydraulic test pump in all kinds of medium and high voltage comp orients or containers. Widely used in chemical industry, mines,  railways, construction industry, factories and scientific research departments.

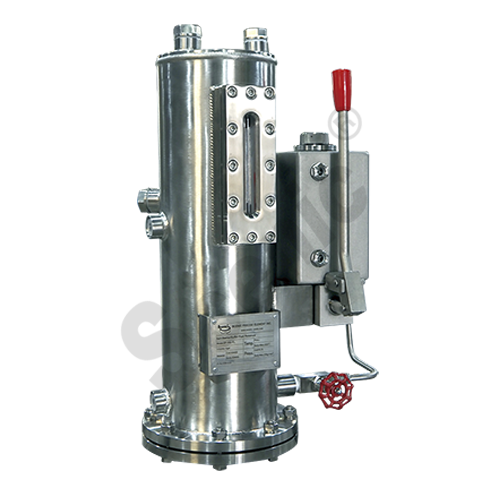

The manual replenishing pump has a compact structure and is easy to operate. It features an all-stainless steel construction, providing strong corrosion resistance. It can operate on oil or water and can continuously replenish fluid to auxiliary systems such as PLAN 53A and PLAN 53B without stopping system operation while they are under pressure. Each pump outputs 16ml of oil, the tank capacity is 2L, the maximum operating pressure is 6MPa, and the entire unit weighs approximately 6KG.
