MGSD / MGSDB
PATENTED
☑ Back-to-back dual cartridge seals for mixer/agitator
☑ Dual Cartridge Seal
☑ High Pressure
MGSD: Dual Cartridge Seals
MGSDB: Dual Cartridge Seals + Bearing
☑ Back-to-back dual cartridge seals for mixer/agitator
☑ Dual Cartridge Seal
☑ High Pressure
MGSD: Dual Cartridge Seals
MGSDB: Dual Cartridge Seals + Bearing
Model :

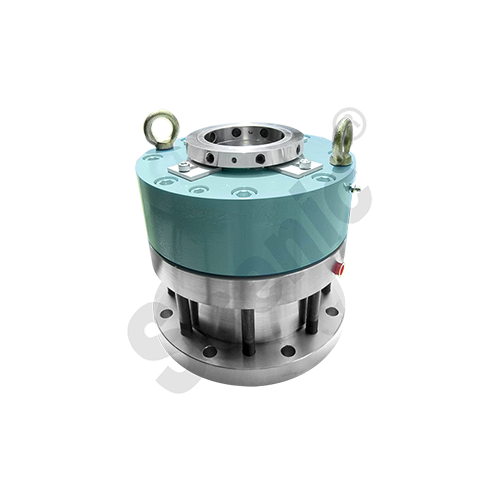

MGSD/MGSDB Dual Mixer/Agitator Mechanical seal
【Operating Capabilities】
- Temperature： -40 ~ 150°C (-40 ~ 300 °F )
- Pressure： Up to 497 psig (35 kg/cm2G)
-
Surface Speed： Up to 1968 fpm (10 m/s)
- Stationary Ring：Carbon Graphite / Silicon Carbide / Tungsten Carbide
- Rotary Ring：Silicon Carbide / Tungsten Carbide
- Metal Parts：316 SS / 304 SS / 316L SS / 316Ti SS / Duplex Stainless / Alloy C-276 / Titanium / Monel®
- Elastomeric O-rings：FKM / AFLAS / NBR / EPDM / TV / FFKM (SceniRAZTM / Chemraz® / Kalrez®)
- Gland Gasket：Glass-Filled PTFE / Non- Asbestos / O-Ring
- Springs：316 SS / Alloy C-276 / Inconel®
