FBG110
PATENTED
☑ Non-contacting Seal Faces
☑ Reduced Cost/Power/Vibration
☑ No Auxiliary System Required
☑ Easy to Maintain, Safe & Reliable
☑ Drop Proof Spring Design
☑ Cartridge Seal Design
(1)FBG110：Built-in dry gas seal
(2)FBG120：External dry seal
☑ Non-contacting Seal Faces
☑ Reduced Cost/Power/Vibration
☑ No Auxiliary System Required
☑ Easy to Maintain, Safe & Reliable
☑ Drop Proof Spring Design
☑ Cartridge Seal Design
(1)FBG110：Built-in dry gas seal
(2)FBG120：External dry seal
Model :

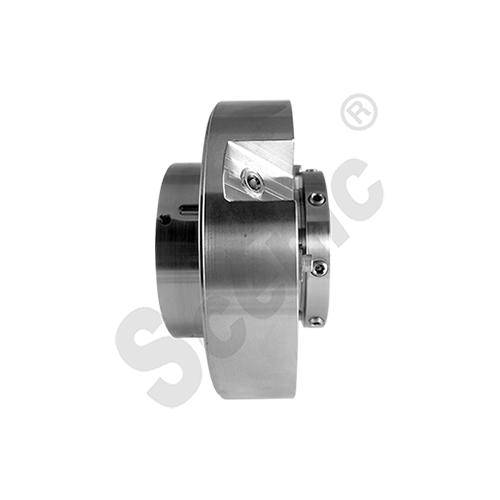

FBG110 Non-Contact Dry Gas Seals
External sealing support system not required. FBG110 utilizes process gas to create a rigid gas film for the non-contacting seal faces.
The dry gas seals can run continuously for several years under a normal operation without requiring any shutdowns for maintenance.
The dry gas seals can run continuously for several years under a normal operation without requiring any shutdowns for maintenance.
※ More Customized Sealing Solution. Please feel free to contact us.
Catalog Download
【Operating Capabilities】
- Temperature： -20 ~ 230 ℃ (-40 ~ 446 ℉)
- Pressure：up to 200 psig (0~14 kg/cm2G)
-
Surface Speed：600~1000 fpm
- Stationary Ring：Metal Carbon / Hard Carbide
- Rotary Ring：Metal Carbon
- Metal Parts：SUS304 / SUS316 / SUS316L / 316Ti / Hastelloy C / Titanium / Duplex / Monel®
- Elastomeric O-rings：FFKM : Chemraz® / Kalrez® / SceniRAZTM ; Viton / NBR / Aflas(HTCR) / EPDM / PFT / Hiflour
- Gland Gasket：Glass-Filled PTFE / Non- Asbestos / O-Ring
- Springs：Special Metal
• Designed for various rotating equipment, such as pumps, steam turbines, mixers, agitators, blowers, windmills, & other rotating equipments.
